# Seven Different Facetings of the Truncated Icosahedron

The polyhedron above is the truncated icosahedron, widely known as the pattern for most soccer balls. In the image below, the faces and edges have been hidden, leaving only the vertices.

To make a faceted version of this polyhedron, these vertices must be connected in novel ways, creating new edges and faces. There are many faceted versions of this polyhedron, of which seven are shown below.

I used Stella 4d to make these polyhedral images, and you’re invited to try the program for yourself at http://www.software3d.com/Stella.php.

# Ten Different Facetings of the Rhombicosidodecahedron

This is the rhombicosidodecahedron. It is considered by many people, including me, to be the most attractive Archimedean solid.

To create a faceted polyhedron, the first step is to get rid of all the faces and edges, leaving only the vertices, as shown below.

In the case of this polyhedron, there are sixty vertices. To create a faceted version of this polyhedron, these vertices are connected by edges in ways which are different than in the original polyhedron. The new positioning of edges defines new faces, often in the interior of the original polyhedron. Here is one such faceting, with the red hexagonal faces in the interior of the now-removed original polyhedron.

The rhombicosidodecahedron can be faceted in many different ways. I don’t know how many possible facetings this polyhedron has, but it is a finite number much larger than the ten shown in this post. Here’s another one.

In faceted polyhedra, many faces intersect other faces, as is the case with the red and yellow faces above. The next faceting demonstrates that faceted polyhedra are sometimes incredibly complex.

Faceted polyhedra can even contain holes that go all the way through the solid, as seen in the next image.

Sometimes, a faceting of a non-chiral polyhedron can be chiral, as seen below. Chiral polyhedra are those which exist in “left-handed” and “right-handed” reflections of each other.

Any chiral polyhedron may be fused with its mirror image to form a compound, and that’s exactly what was done to produce the next image. In addition to being a polyhedral compound, it is also, itself, another faceted version of the rhombicosidodecahedron.

All these polyhedral manipulations and gif-creations were performed using a program called Stella 4d: Polyhedron Navigator. If you’d like to try Stella for yourself, please visit http://www.software3d.com/Stella.php, where a free trial download is available.

The rest of the rhombicosidodecahedron-facetings needed to round out this set of ten are shown below, without further comment.

# ZigZag: A Faceting of the Great Rhombcuboctahedron

I made this using Stella 4d: Polyhedron Navigator. You can try this program for free at http://www.software3d.com/Stella.php.

# A Faceted Truncated Icosahedron

This is one of many possible facetings of the truncated icosahedron. I made it using Stella 4d, which you can try for yourself at this website: http://www.software3d.com/Stella.php.

# A Faceting of the Rhombcuboctahedron

This particular faceting of the rhombcuboctahedron can also be viewed as a cluster of stella octangulae. I made it using Stella 4d, polyhedron-manipulating software you can try, for yourself, at http://www.software3d.com/Stella.php.

# A Hollow Faceting of the Rhombicosidodecahedron, and Its Hollow Dual

The images above all show a particular faceting of the rhombicosidodecahedron which, to my surprise, is hollow. It has the vertices of a rhombicosidodecahedron, but two different face-types, as seen in the smaller pictures: yellow hexagons, and red isosceles trapezoids. (To enlarge any image in this post, simply click on it.)

The dual of this polyhedron is even more obviously hollow, as seen below. Its faces, as seen in the still picture, are crossed hexagons — with edges which cross three times per hexagon, no less.

The software I used to make these polyhedra, Stella 4d, will return an error message if the user attempts to make a polyhedron which is not mathematically valid. When I’ve made things that look (superficially) like this before, I used “hide selected faces” to produce hollow geometrical figures which were not valid polyhedra, but that isn’t what happened here (I hid nothing), so this has me confused. Stella 4d (software you can buy, or try for free, here) apparently considers these valid polyhedra, but I am at a loss to explain such familiar concepts as volume for such unusual polyhedra, or how such things could even exist — yet here they are. Clarifying comments would be most appreciated.

# Standard and Faceted Versions, Side by Side, of Each of the Thirteen Archimedean Solids

These two polyhedra are the truncated tetrahedron on the left, plus at least one faceted version of that same Archimedean solid on the right. As you can see, in each case, the figures have the same set of vertices — but those vertices are connected in a different way in the two solids, giving the polyhedra different faces and edges.

(To see larger images of any picture in this post, simply click on it.)

The next three are the truncated cube, along with two different faceted truncated cubes on the right. The one at the top right was the first one I made — and then, after noticing its chirality, I made the other one, which is the compound of the first faceted truncated cube, plus its mirror-image. Some facetings of non-chiral polyhedra are themselves non-chiral, but, as you can see, chiral facetings of non-chiral polyhedra are also possible.

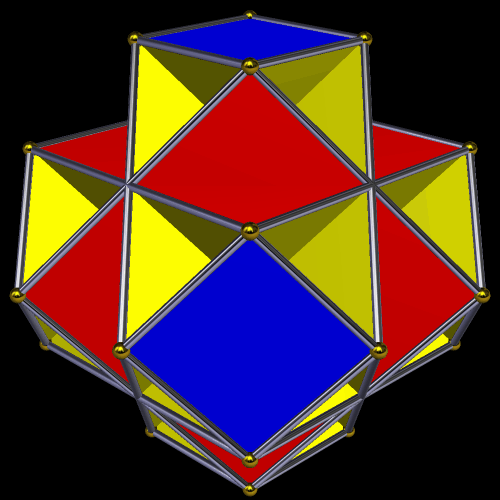

The next two images show a truncated octahedron, along with a faceted truncated octahedron. As these images show, sometimes faceted polyhedra are also interesting polyhedra compounds, such as this compound of three cuboids.

The next polyhedra shown are a truncated dodecahedron, and a faceted truncated dodecahedron. Although faceted polyhedra do not have to be absurdly complex, this pair demonstrates that they certainly can be.

Next are the truncated icosahedron, along with one of its many facetings — and with this one (below, on the right) considerably less complex than the faceted polyhedron shown immediately above.

The next two shown are the cuboctahedron, along with one of its facetings, each face of which is a congruent isosceles triangle. This faceted polyhedron is also a compound — of six irregular triangular pyramids, each of a different color.

The next pair are the standard version, and a faceted version, of the rhombcuboctahedron, also known as the rhombicuboctahedron.

The great rhombcuboctahedron, along with one of its numerous possible facetings, comes next. This polyhedron is also called the great rhombicuboctahedron, as well as the truncated cuboctahedron.

The next pair are the snub cube, one of two Archimedean solids which is chiral, and one of its facetings, which “inherited” its chirality from the original.

The icosidodecahedron, and one of its facetings, are next.

The next pair are the original, and one of the faceted versions, of the rhombicosidodecahedron.

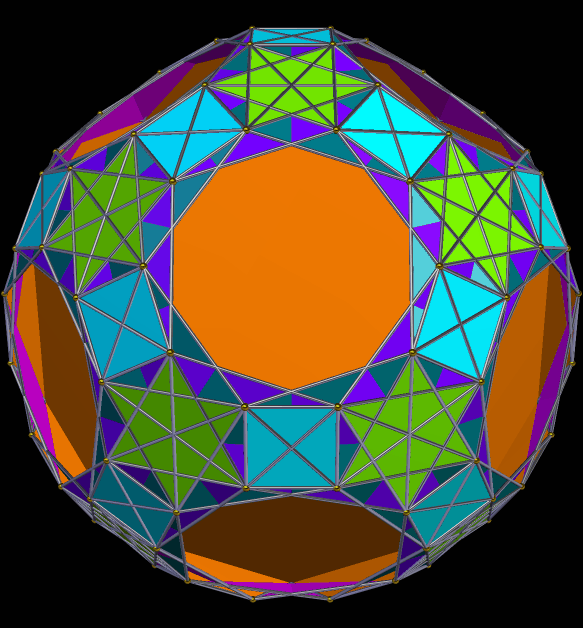

The next two are the great rhombicosidodecahedron, and one of its facetings. This polyhedron is also called the truncated icosidodecahedron.

Finally, here are the snub dodecahedron (the second chiral Archimedean solid, and the only other one, other than the snub cube, which possesses chirality), along with one of the many facetings of that solid. This faceting is also chiral, as are all snub dodecahedron (and snub cube) facetings.

Each of these polyhedral images was created using Stella 4d: Polyhedron Navigator, software available at this website.
