A Rhombic Triacontahedron, Vertices Surrounded By Smaller Rhombic Triacontahedra, and Its Interesting Dual

Posted on 8 March 2020 by RobertLovesPi

The first image shows a central yellow rhombic triacontahedron, with smaller, blue rhombic triacontahedra attached to each of its thirty-two vertices. The second polyhedron shown is the dual of the first one, with colors chosen by the number of sides per face in the second image — pentagons red, and triangles yellow. The convex hull of this second polyhedral complex shown would be an icosidodecahedron, itself the dual of the rhombic triacontahedron.

I use software called Stella 4d: Polyhedron Navigator to make the rotating polyhedral images on this blog. You can try Stella for yourself, for free, at http://www.software3d.com/Stella.php.

The Dual of a Geodesic Rhombicosidodecahedron

Posted on 16 November 2019 by RobertLovesPi

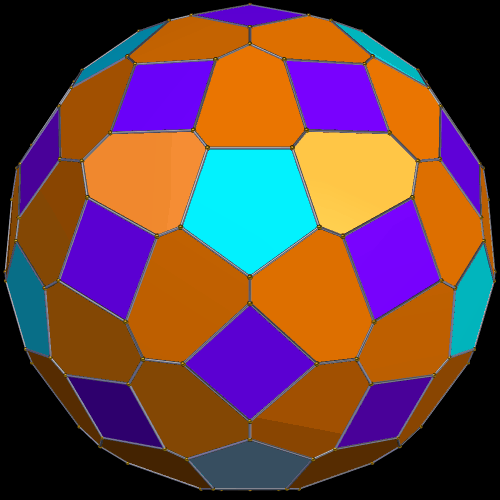

This polyhedron has, as faces, a dozen regular pentagons, thirty rhombi, and sixty irregular heptagons. I made this using Stella 4d, which is available as a free trial download at http://www.software3d.com/Stella.php.

The Compound of the Truncated Isocahedron and the Pentakis Dodecahedron, with Related Polyhedra

Posted on 26 August 2018 by RobertLovesPi

The yellow-and-red polyhedron in the compound below is the truncated icosahedron, one of the Archimedean solids. The blue figure is its dual, the pentakis dodecahedron, which is one of the Catalan solids.

The next image shows the convex hull of this base/dual compound. Its faces are kites and rhombi.

Shown next is the dual of this convex hull, which features regular hexagons, regular pentagons, and isosceles triangles.

Next, here is the compound of the last two polyhedra shown.

Continuing this process, here is the convex hull of the compound shown immediately above.

This latest convex hull has an interesting dual, which is shown below. It blends characteristics of several Archimedean solids, including the rhombicosidodecahedron, the truncated icosahedron, and the great rhombicosidodecahedron.

This process could be continued indefinitely — making a compound of the last two polyhedra shown, then forming its convex hull, then creating that convex hull’s dual, and so on.

All these polyhedra were made using Stella 4d: Polyhedron Navigator, which you can purchase (or try for free) at http://www.software3d.com/Stella.php.

Eight Kite-Rhombus Solids, Plus Five All-Kite Polyhedra — the Convex Hulls of the Thirteen Archimedean-Catalan Compounds

Posted on 29 April 2018 by RobertLovesPi

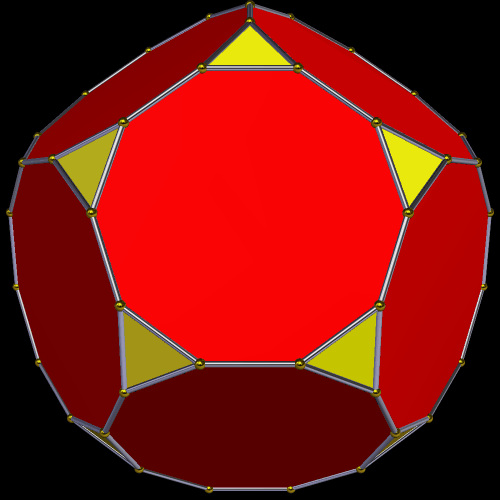

In a kite-rhombus solid, or KRS, all faces are either kites or rhombi, and there are at least some of both of these quadrilateral-types as faces. I have found eight such polyhedra, all of which are formed by creating the convex hull of different Archimedean-Catalan base-dual compounds. Not all Archimedean-Catalan compounds produce kite-rhombus solids, but one of the eight that does is derived from the truncated dodecahedron, as explained below.

The next step is to create the compound of this solid and its dual, the triakis icosahedron. In the image below, this dual is the blue polyhedron.

The convex hull of this compound, below, I’m simply calling “the KRS derived from the truncated dodecahedron,” until and unless someone invents a better name for it.

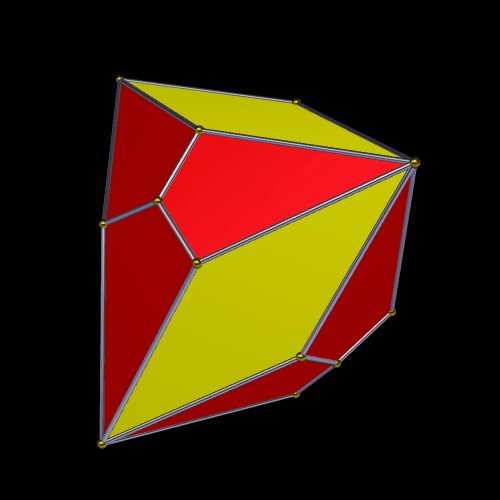

The next KRS shown is derived, in the same manner, from the truncated tetrahedron.

Here is the KRS derived from the truncated cube.

The truncated icosahedron is the “seed” from which the next KRS shown is derived. This KRS is a “stretched” form of a zonohedron called the rhombic enneacontahedron.

Another of these kite-rhombus solids, shown below, is based on the truncated octahedron.

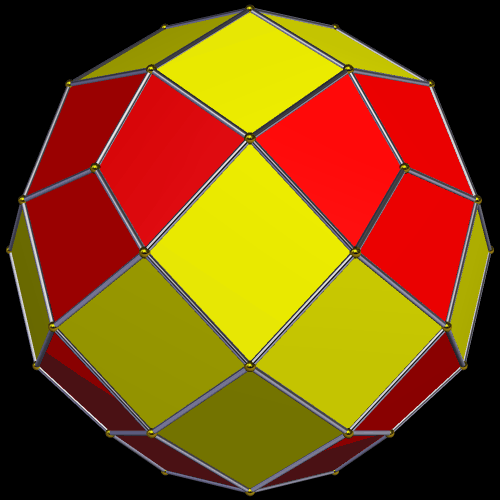

The next KRS shown is based on the rhombcuboctahedron.

Two of the Archimedeans are chiral, and they both produce chiral kite-rhombus solids. This one is derived from the snub cube.

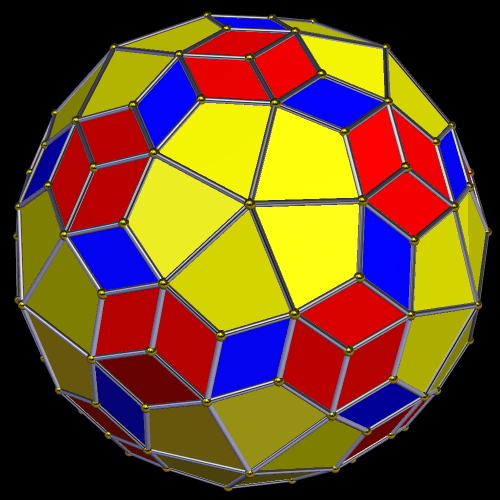

Finally, to complete this set of eight, here is the KRS based on the snub dodecahedron.

You may be wondering what happens when this same process is applied to the other five Archimedean solids. The answer is that all-kite polyhedra are produced; they have no rhombic faces. Two are “stretched” forms of Catalan solids, and are derived from the cuboctahedron and the icosidodecahedron:

all kites based on the cuboctahedron also a stretching of the strombic icositetrahedron which is the dual of the rhombcuboctahedron

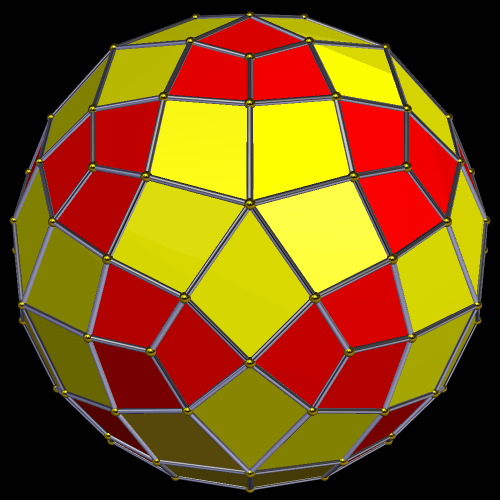

all kites based on the icosidodechadedron and a stretching of the strombic hexecontahedron which is the dual of the RID

If this procedure is applied to the rhombicosidodecahedron, the result is an all-kite polyhedron with two different face-types, as seen below.

The two remaining Archimedean solids are the great rhombcuboctahedron and the great rhombicosidodecahedron, each of which produces a polyhedron with three different types of kites as faces.

all kites based on the great rhombcuboctahedron

The polyhedron-manipulation and image-production for this post was performed using Stella 4d: Polyhedron Navigator, which may be purchased or tried for free at http://www.software3d.com/Stella.php.

The 43rd Stellation of the Snub Dodecahedron, and Related Polyhedra, Part One

Posted on 5 August 2017 by RobertLovesPi

If you stellate the snub dodecahedron 43 times, this is the result. The yellow faces are kites, not rhombi.

Stellated Snub Dodeca refl

Like the snub dodecahedron itself, this polyhedron is chiral. Here is the mirror-image of the polyhedron shown above.

Stellated Snub Dodeca 43rd mirror image

Any chiral polyhedron may be combined with its own mirror-image to create a compound.

Compound of enantiomorphic pair x

This is the dual of the snub dodecahedron’s 43rd stellation.

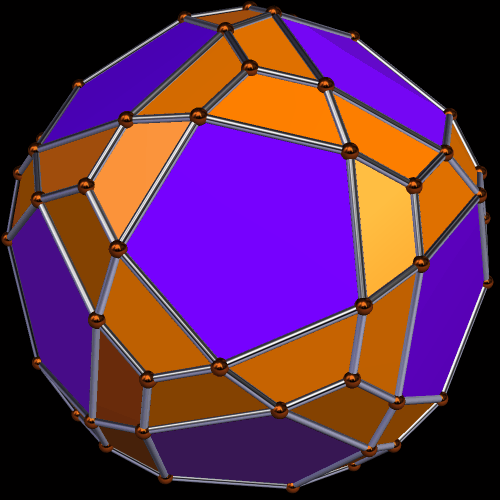

Stellated Snub Dodeca refl chiral dual

This dual is also chiral. Here is its reflection.

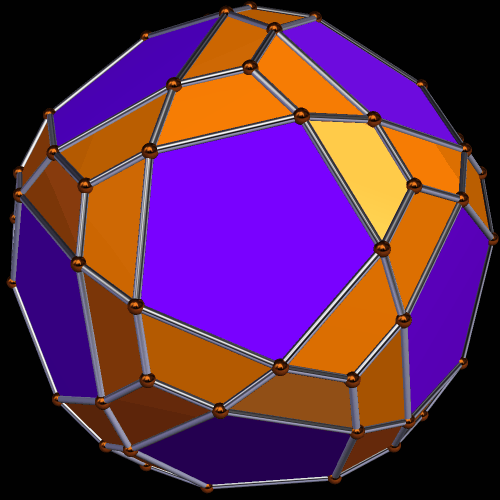

43rd stellation snub dodeca dual reflection

Finally, here is the compound of both duals.

Compound of enantiomorphic pair duals

I used Stella 4d: Polyhedron Navigator to create these images. You may try this program for yourself at http://www.software3d.com/Stella.php.

An Expansion of the Rhombic Enneacontahedron with 422 Faces, Together with Its 360-Faced Dual

Posted on 29 July 2016 by RobertLovesPi

422 faces expansion of the REC

The polyhedron above had 422 faces and 360 vertices. In dual polyhedra, these numbers are reversed, so the next polyhedra (the dual of the first one) has 360 faces and 422 vertices. Both were created using Stella 4d, available here.

422 faces expansion of the REC the dual with 360 faces

A Polyhedral Journey, Beginning With an Expansion of the Rhombic Triacontahedron

Posted on 25 July 2016 by RobertLovesPi

The blue figure below is the rhombic triacontahedron. It has thirty identical faces, and is one of the Catalan solids, also known as Archimedean duals. This particular Catalan solid’s dual is the icosidodecahedron.

I use a program called Stella 4d (available here) to transform polyhedra, and the next step here was to augment each face of this polyhedron with a prism, keeping all edge lengths the same.

After that, I created the convex hull of this prism-augmented rhombic triacontahedron, which is the smallest convex figure which can enclose a given polyhedron.

Another ability of Stella is the “try to make faces regular” function. Throwing this function at this four-color polyhedron above produced the altered version below, in which edge lengths are brought as close together as possible. It isn’t possible to do this perfectly, though, and that is most easily seen in the yellow faces. While close to being squares, they are actually trapedoids.

For the next transformation, I looked at the dual of this polyhedron. If I had to name it, I would call it the trikaipentakis icosidodecahedron. It has two face types: sixty of the larger kites, and sixty of the smaller ones, also.

Next, I used prisms, again, to augment each face. The height used for these prisms is the length of the edges where orange kites meet purple kites.

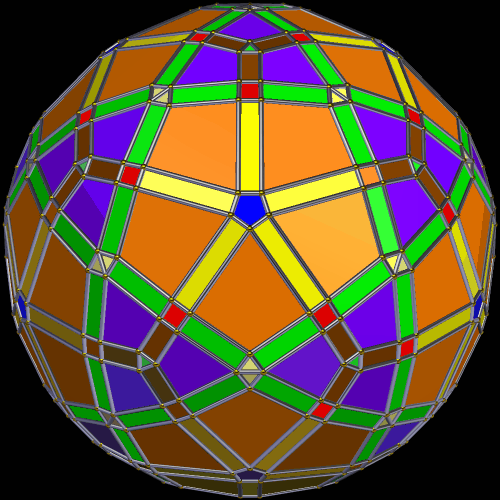

Lastly, I made the convex hull of the polyhedron above. This convex hull appears below.

The Snub Dodecahedron and Related Polyhedra, Including Compounds

Posted on 5 March 2016 by RobertLovesPi

The dual of the snub dodecahedron (above) is called the pentagonal hexacontahedron (below, left). The compound of the two is shown below, at right. (Any of the smaller images here may be enlarged with a click.)

Like all chiral polyhedra, both these polyhedra can form compounds with their own mirror-images, as seen below.

Compound of snub dodeca enantiomorphic pair

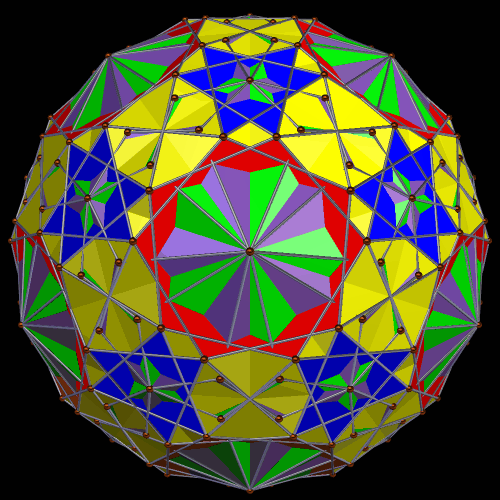

Finally, all four polyhedra — two snub dodecahedra, and two pentagonal hexacontahedra — can be combined into a single compound.

This polyhedral manipulation and .gif-making was performed using Stella 4d, a program you can find here.

A Torus and Its Dual, Part II

Posted on 12 February 2016 by RobertLovesPi

After I published the last post, which I did not originally intend to have two parts, this comment was left by one of my blog’s followers. My answer is also shown.

A torus can be viewed as a flexible rectangle rolled into a donut shape, and I had used 24 small rectangles by 24 small rectangles as the settings for Stella 4 for the torus, and its dual, in the last post — which, due to the nature of that program, are actually rendered as toroidal polyhedra. To investigate my new question, I increased 24×24 to 90×90, and these three images show the results. The first shows a 90×90 torus, the second shows its dual, and the third shows the compound of the two.

When I compare these images to those in the previous post, it is clear that these figures are approaching a limit as n, in the expression “nxn rectangle,” increases. What’s more, I recognize the dual now, of the true torus, at the limit, as n approaches infinity — it’s a cone. It’s not a finite-volume cone, but the infinite-volume cone one obtains by rotating a line around an axis which intersects that line. This figure, not a finite-volume cone, is the cone used to define the conic sections: the circle, ellipse, parabola, and hyperbola.

What’s more, I smell calculus afoot here. I do not yet know enough calculus.

“Learn a lot more about calculus” is definitely on my agenda for the coming Summer, for several reasons, not the least of which is that I plainly need it to make more headway in my understanding of geometry.

[Note: Stella 4d, the program used to make these images, may be found at http://www.software3d.com/Stella.php.]

A Torus and Its Dual, Part I

Posted on 12 February 2016 by RobertLovesPi

The torus is a familiar figure to many, so I chose a quick rotational period (5 seconds) for it. The dual of a torus — and I don’t know what else to call it — is not as familiar, so, for it, I extended the rotational period to 12 seconds.
