The Double Rhombicosidodecahedron

Posted on 31 January 2022 by RobertLovesPi

This is a rhombicosidodecahedron, one of the Archimedean solids.

If one pentagonal cupola is removed from this polyhedron, the result is the diminished rhombicosidodecahedron, which is one of the Johnson solids (J76).

The next step is to take another J76, and attach it to the first one, so that their decagonal faces meet.

I’m calling the result the “double rhombicosidodecahedron.”

I did these manipulations of polyhedra and their images with a program called Stella 4d: Polyhedron Navigator. There’s a free trial download available, if you’d like to try the program for yourself, and it’s at this website.

A Second Type of Double Icosahedron, and Related Polyhedra

Posted on 24 June 2018 by RobertLovesPi

After seeing my post about what I called the “double icosahedron,” which is two complete icosahedra joined at one common triangular face, my friend Tom Ruen brought my attention to a similar figure he likes. This second type of double icosahedron is made of two icosahedra which meet at an internal pentagon, rather than a triangular face. Tom jokingly referred to this figure as “a double patty pentagonal antiprism in a pentagonal pyramid bun.”

It wasn’t hard to make this figure using Stella 4d, the program I use for polyhedral manipulation and image-creation (you can try it for free here), but I didn’t make it out of icosahedra. It was easier to make this figure from gyroelongated pentagonal pyramids, or “J11s” for short. This polyhedron is one of the 92 Johnson solids.

To make the polyhedron Tom had brought to my attention, I simply augmented one J11 with another J11, joining them at their pentagonal faces. Curious about what the dual of this solid would look like, I generated it with Stella.

The dual of the double J11 appears to be a modification of a dodecahedron, which is no surprise, for the dodecahedron is the dual of the icosahedron.

I next explored the stellation-series of the double J11, and found several attractive polyhedra there. This one is the double J11’s 4th stellation.

The next polyhedron shown is the double J11’s 16th stellation.

Here is the 30th stellation:

I also liked the 43rd:

The next one shown is the double J11’s 55th stellation.

Finally, the 56th stellation is shown below. These stellations, as well as the double J11 itself, and its dual, all have five-fold dihedral symmetry.

Having “mined” the double J11’s stellation-series for interesting polyhedra, I next turned to zonohedrification of this solid. The next image shows the zonohedron based on the double J11’s faces. It has many rhombic faces in two “hemispheres,” separated by a belt of octagonal zonogons. This zonohedron, as well as the others which follow, all have ten-fold dihedral symmetry.

Zonohedrification based on vertices produced this result:

The next zonohedron shown was formed based on the edges of the double J11.

Next, I tried zonohedrification based on vertices and edges, both.

Next, vertices and faces:

The next zonohedrification-combination I tried was to add zones based on the double J11’s edges and faces.

Finally, I ended this exploration of the double J11’s “family” by adding zones to build a zonohedron based on all three of these polyhedron characteristics: vertices, edges, and faces.

The Double Icosahedron, and Some of Its “Relatives”

Posted on 17 June 2018 by RobertLovesPi

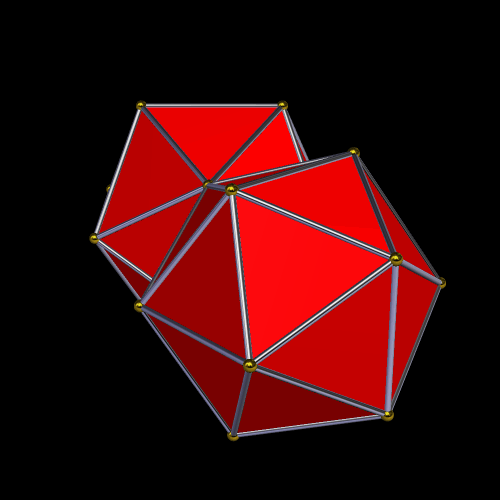

The double icosahedron is simply an icosahedron, augmented on a single face by a second icosahedron. I thought it might be interesting to explore some transformations of this solid, using Stella 4d: Polyhedron Navigator (available here), and I was not disappointed. I used Stella to produce all the images in this post.

It is well-known that the dual of the icosahedron is another Platonic solid, the dodecahedron. Naturally, I wanted to see the double icosahedron’s dual, and here it is — a simple operation for Stella. This dual resembles a dodecahedron in its center, but gets more unusual-looking as one moves further out from its core.

I next examined stellations of the double icosahedron, but did not find any which seemed attractive enough to post, until I saw its sixteenth stellation, which features six kites as faces, in sets of three, on opposite sides of the solid.

What proved most fruitful was my examination of various zonohedra based on the double icosahedron. Here’s what I found for the zonohedron based on the faces of the double icosahedron: a large number of rhombic faces, with Northern and Southern “hemispheres” separated by an “equator” of hexagonal zonogons.

The next image is the zonohedron based on the edges of the double icosahedron.

The next zonohedron shown is based on the vertices of the double icosahedron.

All of these zonohedra have 6-fold dihedral symmetry, while the double icosahedron itself has 3-fold dihedral symmetry. The next image shows the zonohedron based on both the vertices and edges of the double icosahedron.
