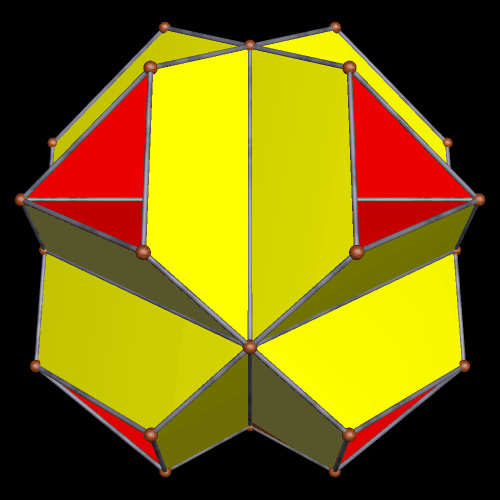

The polyhedron above is the 12th stellation of the truncated cube. The one below is the 14th.

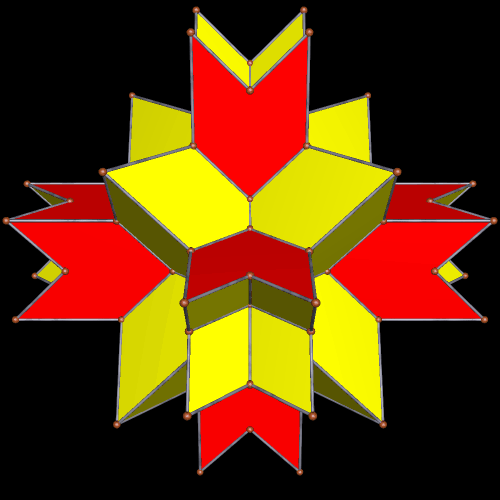

The next one shown is the 18th and final stellation. If stellated again, the result is an ordinary truncated cube.
These virtual models were made using Stella 4d, software you may try for yourself at http://www.software3d.com/Stella.php.
I’ve been shown, by the program’s creator, a function of Stella 4d which was previously unknown to me, and I’ve been having fun playing around with it. It works like this: you start with a polyhedron with, say, icosidodecahedral symmetry, set the program to view it as a figure with only tetrahedral symmetry (that’s the part which is new to me), and then stellate the polyhedron repeatedly. (Note: you can try a free trial download of this program here.) Several recent posts here have featured polyhedra created using this method. For this one, I started with the snub dodecahedron, one of two Archimedean solids which is chiral.

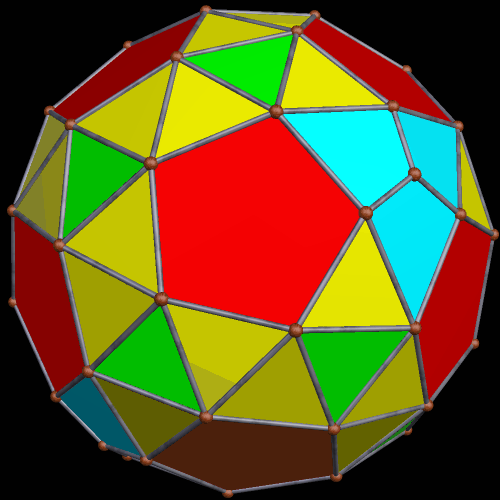

Using typical stellation (as opposed to this new variety), stellating the snub dodecahedron once turns all of the yellow triangles in the figure above into kites, covering each of the red triangles in the process. With “tetrahedral stellation,” though, this can be done in stages, producing a greater variety of snub-dodecahedron variants which feature kites. As it turns out, the kites appear twelve at a time, in four sets of three, with positions corresponding to the vertices (or the faces) of a tetrahedron. Here’s the first one, featuring one dozen kites.
Having done this once (and also changing the colors, just for fun), I did it again, resulting in a snub-dodecahedron-variant featuring two dozen kites. At this level, the positions of the kite-triads correspond to those of the vertices of a cube.
You probably know what’s coming next: adding another dozen kites, for a total of 36, in twelve sets of three kites each. At this point, it is the remaining, non-stellated four-triangle panels, not the kite triads, which have positions corresponding to those of the vertices of a cube (or the faces of an octahedron, if you prefer).
Incoming next: another dozen kites, for a total of 48 kites, or 16 kite-triads. The four remaining non-stellated panels of four triangles each are now arranged tetrahedrally, just as the kite-triads were, when the first dozen kites were added.
With one more iteration of this process, no triangles remain, for all have been replaced by kites — sixty (five dozen) in all. This is also the first “normal” stellation of the snub dodecahedron, as mentioned near the beginning of this post.
From beginning to end, these polyhedra never lost their chirality, nor had it reversed.
As the dual of the snub dodecahedron, which is chiral, this member of the Catalan Solids is also chiral — in other words, it exists in left- and right-handed versions, known an entantiomers. They are mirror-images of each other, like left and right gloves or shoes. Here’s the other one, by comparison:
It is always possible to make a compound, for a chiral polyhedron, from its two enantiomers. Here’s the one made from the two mirror-image pentagonal hexacontahedra shown above:
Stellating this enantiomorphic-pair-compound twenty-one times produces this interesting result:
And, returning to the unstellated enantiamorphic-pair-compound, here is its convex hull:
This convex hull strikes me as an interesting polyhedron in its own right, so I tried stellating it several times, just to see what would happen. Here’s one result, after seventeen stellations:
Software credit: I made these rotating images using Stella 4d: Polyhedron Navigator. That program may be bought at http://www.software3d.com/Stella.php, and has a free “try it before you buy it” trial download available at that site, as well. I also used Geometer’s Sketchpad and MS-Paint to produce the flat purple-and-black image found on faces near the top of this post (and, by itself, in the previous post on this blog), but I know of nowhere to get free trial downloads of these latter two programs.
