I made these .gifs using Stella 4d: Polyhedron Navigator, which you can try for free at this website.
Complexes of 61 Small Stellated Dodecahedra Each, Shown with Three Different Coloring Schemes
2
Tag Archives: small stellated dodecahedron
A Small Stellated Dodecahedron, Inscribed Inside a Partially-Invisible Icosahedron
Twelve of the icosahedron’s twenty faces have been hidden from view, exposing the small stellated dodecahedron nestled inside the icosahedron, and giving the visible parts of the model pyritohedral symmetry.
I made this using Stella 4d, a program you can try for yourself at http://www.software3d.com/Stella.php.
A Compound of the Icosahedron and the Small Stellated Dodecahedron
I found this by further stellation of the polyhedra shown in the two posts right before this one, using a program called Stella 4d: Polyhedron Navigator. You can try Stella for free at http://www.software3d.com/Stella.php.
A Compound of the Great Rhombicosidodecahedron and the Small Stellated Dodecahedron
I made this, using Stella 4d (available here), by multiple stellation of the faceted great rhombicosidodecahedron shown in the post immediately before this one.
The Compound of the Octahedron and the Small Stellated Dodecahedron
I made this rotating virtual model using Stella 4d: Polyhedron Navigator, which you can try for yourself at http://www.software3d.com/Stella.php. This solid is different from most two-part polyhedral compounds because an unusually high fraction of one polyhedron, the yellow octahedron, is hidden inside the compound’s other component.

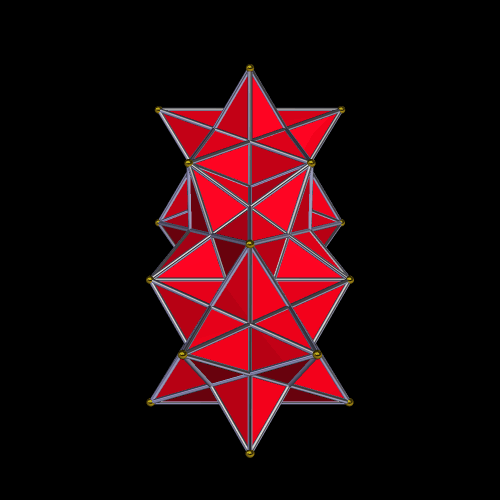

Conjoined Small Stellated Dodecahedral Triplets
The central small stellated dodecahedron is augmented on two opposite star-faces by additional small stellated dodecahedra.
I made this using Stella 4d: Polyhedron Navigator, available at http://www.software3d.com/Stella.php.
A Special Type of Compound, Built with Zome, of the Great and Small Stellated Dodecahedra
For years, I have used Zometools (sold here: http://www.zometool.com) to teach geometry. The constructions for the icosahedron and dodecahedron are easy to teach and learn, due to the use of short reds (R1s) and medium yellows (Y2s) for radii for the two of them, as shown below, with short blue (B1) struts as edges for both polyhedra.
Unexpectedly, a student (name withheld for ethical and legal reasons) combined the two models, making this:
I saw it, and wondered if the two combined Platonic solids could be expanded along the edges, to stellate both polyhedra, with medium blues (B2s), to form the great and small stellated dodecahedron. By trying it, I found out that this would require intersecting blue struts — so a Zomeball needed to be there, at the intersection. Trying, however, only told me that no available combination would fit. After several more attempts, I doubled each edge length, and added some stabilizing tiny reds (R0s), and found a combination that would work, to form a compound of the great and small stellated dodecahedron in which both edge lengths would be equal. In the standard (non-stellated) compound of the icosahedron and dodecahedron, in which the edges are perpendicular, they are unequal in length, and in the golden ratio, which is how that compound differs from the figure shown directly above.
Here’s the stabilized icosahedral core, after the doubling of the edge length:
This enabled stellation of each shape by edge-extension. Each edge had a length twice as long as a B2 added to each side — and it turns out, I discovered, that 2B2 in Zome equals B3 + B0, giving the golden ratio as one of three solutions solution to x² + 1/x = 2x (the others are one, and the golden ratio’s reciprocal). After edge-stellation to each component of the icosahedron/dodecahedron quasi-compound, this is what the end product looked like. This required assembling the model below at home, where all these pictures were taken, for one simple reason: this thing is too wide to fit through the door of my classroom, or into my car.
Here’s a close-up of the central region, as well.
Polygons Related to the Golden Ratio, and Associated Figures in Geometry, Part 1: Triangles
There are two isosceles triangles which are related to the golden ratio, [1 + sqrt(5)]/2, and I used to refer to them as the “golden acute isosceles triangle” and the “golden obtuse isosceles triangle,” before I found out these triangles already have other names –the ones shown above. The golden triangle, especially, shows up in some well-known polyhedra, such as both the great and small stellated dodecahedron. The triangles which form the “points” or “arms” of regular star pentagons (also known as pentagrams) are also golden triangles.
These triangles have sides which are in the golden ratio. For the golden triangle, it is the leg:base ratio which is golden, as shown above. For the golden gnomon, this ratio is reversed: the base:leg ratio is φ, or ~1.61803 — the irrational number known as the golden ratio.
The angle ratios of each of these triangles are also unique. The golden triangle’s angles are in a 1:2:2 ratio, while the angles of the golden gnomon are in a ratio of 1:1:3.
Another interesting fact about these two triangles is that each one can be subdivided into one of each type of triangle. The golden triangle can be split into a golden gnomon, and a smaller golden triangle, while the golden gnomon can be split into a golden triangle, and a smaller golden gnomon, as seen below.
This process can be repeated indefinitely, in each case, creating ever-smaller triangles of each type.
Polyhedra which use these triangles, as either faces or “facelets” (the visible parts of partially-hidden faces) are not uncommon, as previously mentioned. The three most well-known examples are three of the four Kepler-Poinsot solids. In the first two shown below, the small stellated dodecahedron and the great stellated dodecahedron, the actual faces are regular star pentagons which interpenetrate, but the facelets are golden triangles.
The next example is also a Kepler-Poinsot solid: the great dodecahedron. Its actual faces are simply regular pentagons, not star pentagons, but, again, they interpenetrate, hiding much of each face from view. The visible parts, or “facelets,” are golden gnomons.
For another example of a polyhedron made of golden gnomons, I made one myself — meaning that if anyone else has ever seen this polyhedron before, this fact is unknown to me, although I cannot rule it out. I have not given it a name. It has thirty-six faces, all of which are golden gnomons. There are twelve of the larger ones, shown in yellow, and twenty-four of the smaller ones, shown in red. This polyhedron has pyritohedral symmetry (the same type of symmetry seen in the seam-pattern of a typical volleyball), and its convex hull is the icosahedron.
[Picture credits: to create the images in this post, I used both Geometer’s Sketchpad and MS-Paint for the two still, flat pictures found at the top. To make images of the four rotating polyhedra, I used a different program, Stella 4d: Polyhedron Navigator. Stella is available for purchase, with a free trial download available, at http://www.software3d.com/Stella.php.]

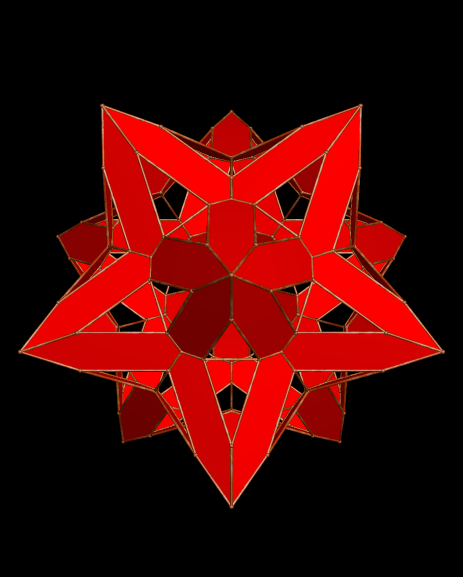

A Hollow Version of the Small Stellated Dodecahedron
Software credit: http://www.software3d.com/stella.php
